Recovery Points for Lexus GX470 (2003-2005) / 4th Gen 4Runner
$80.90
This is a quality, reliable front Recovery Points for Lexus GX470 (2003-2005) / 4th Gen 4Runner with the following features;

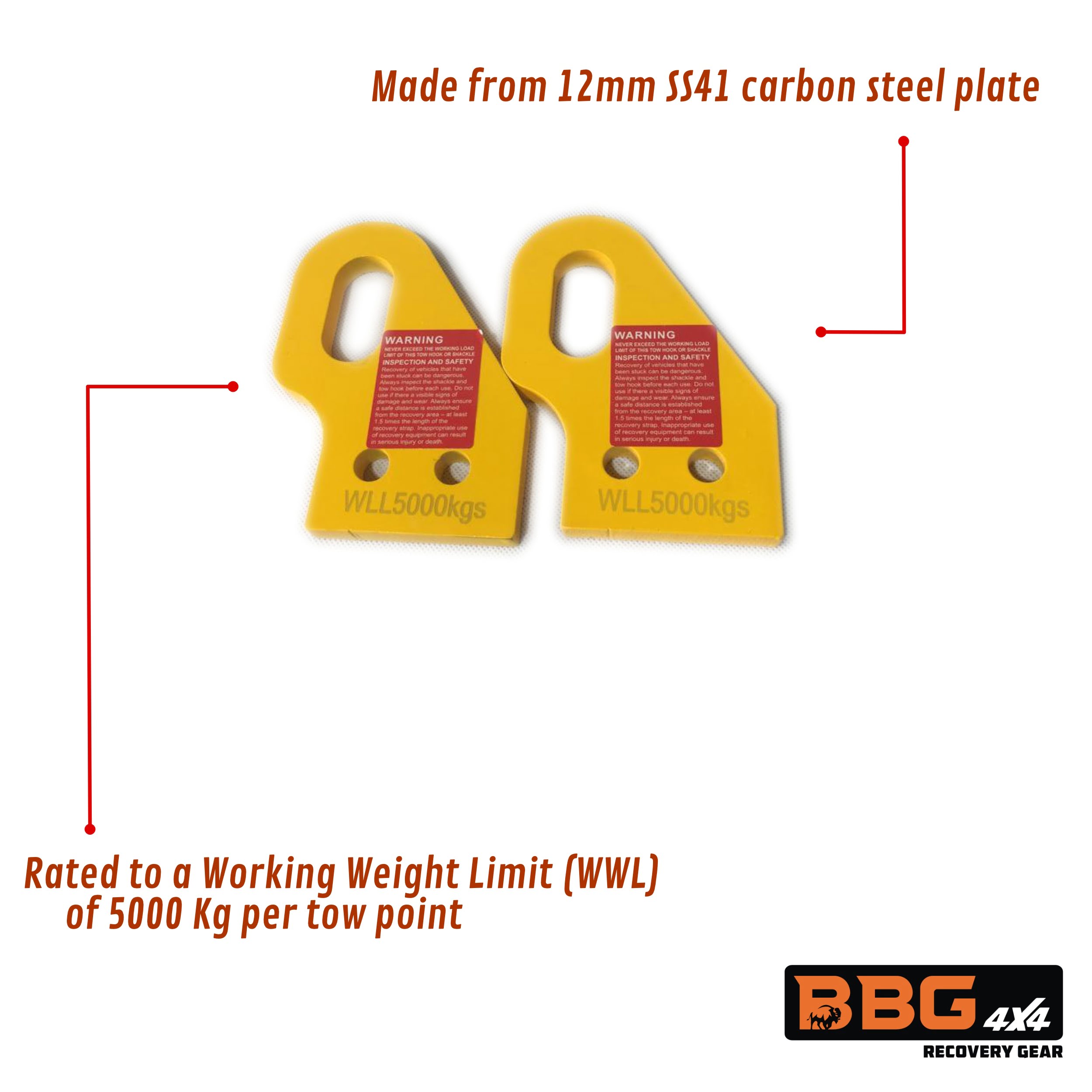

- Made from 12mm SS41 carbon steel plate
- Direct bolt onto your chassis using high tensile bolts – no cutting or welding required
- Powder-coated yellow for high visibility

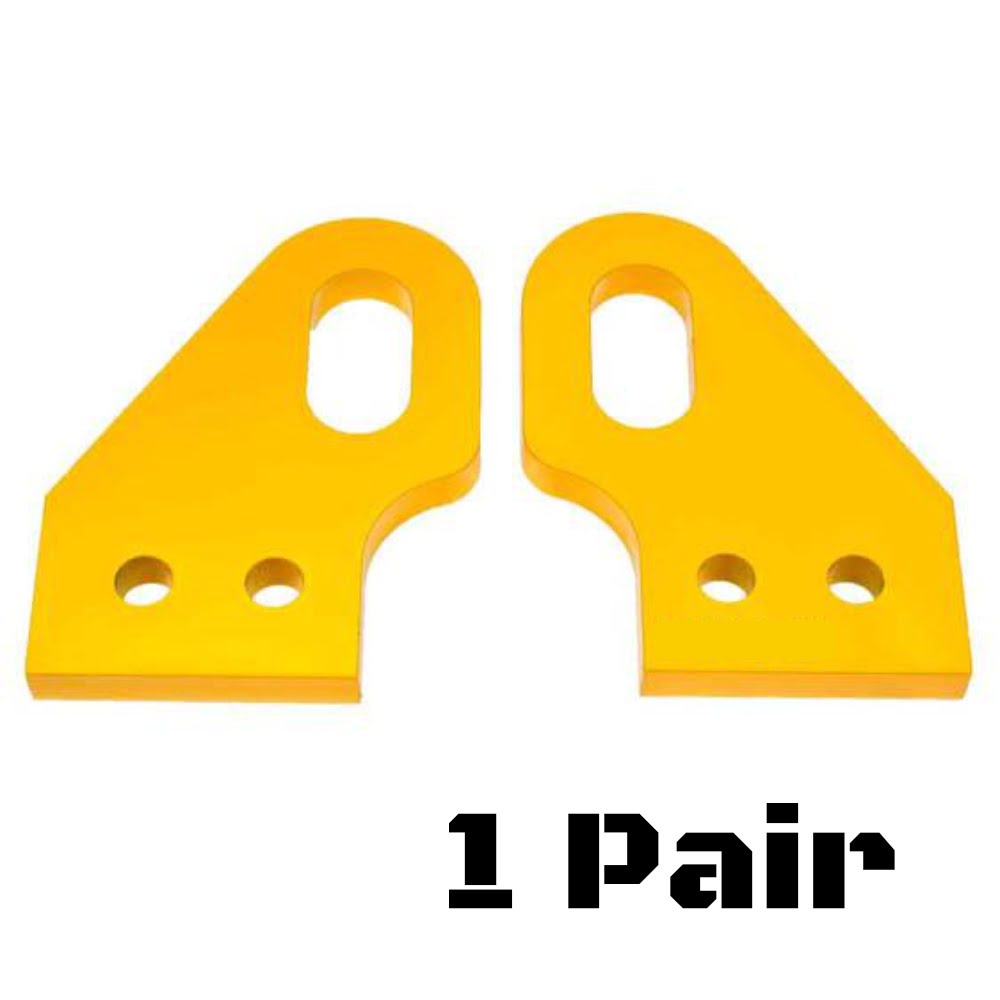

- Matched pair – specific to each side
- Allow for use of 4.7T bow shackles and a bridle strap
- Rated to a Working Weight Limit (WWL) of 5000 Kg per tow point
- The elongated hole for mounting of bow shackle
Out of stock

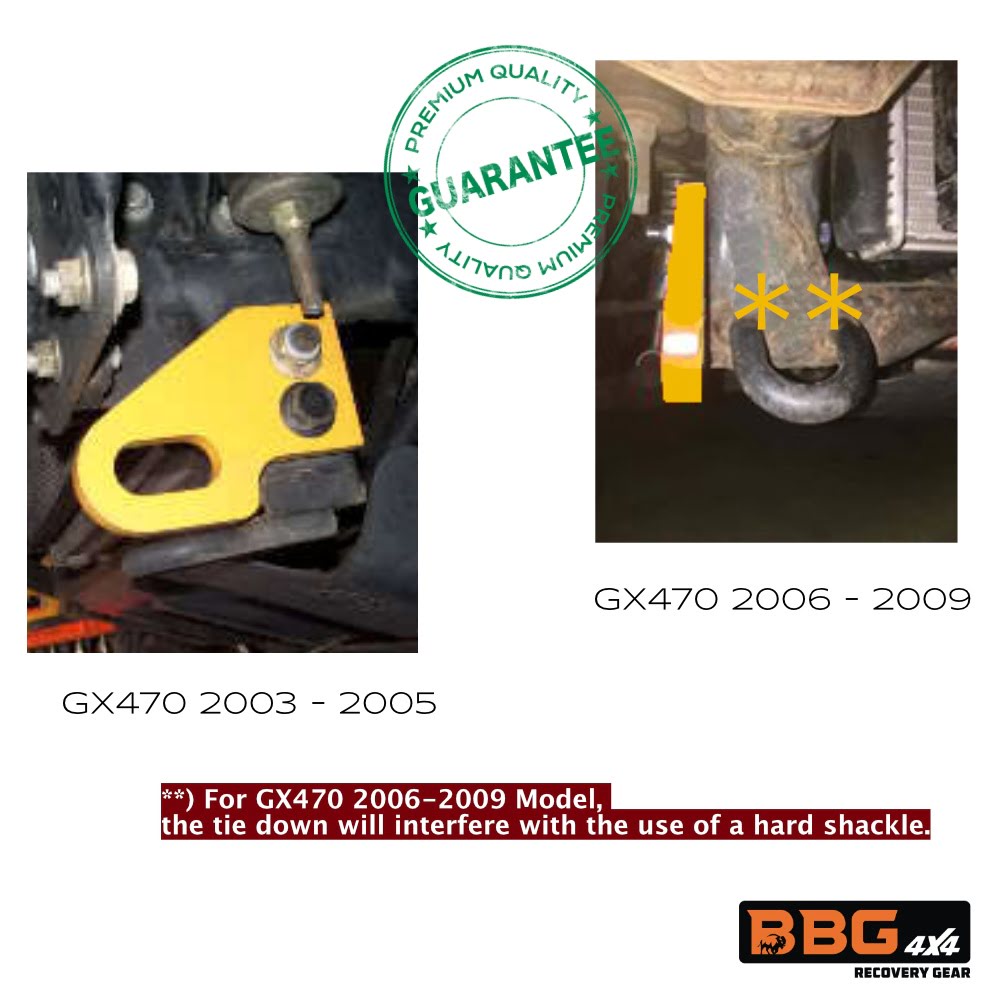

Recovery Points for
Lexus GX470 (2003-2005)
Toyota 4th Gen 4Runner

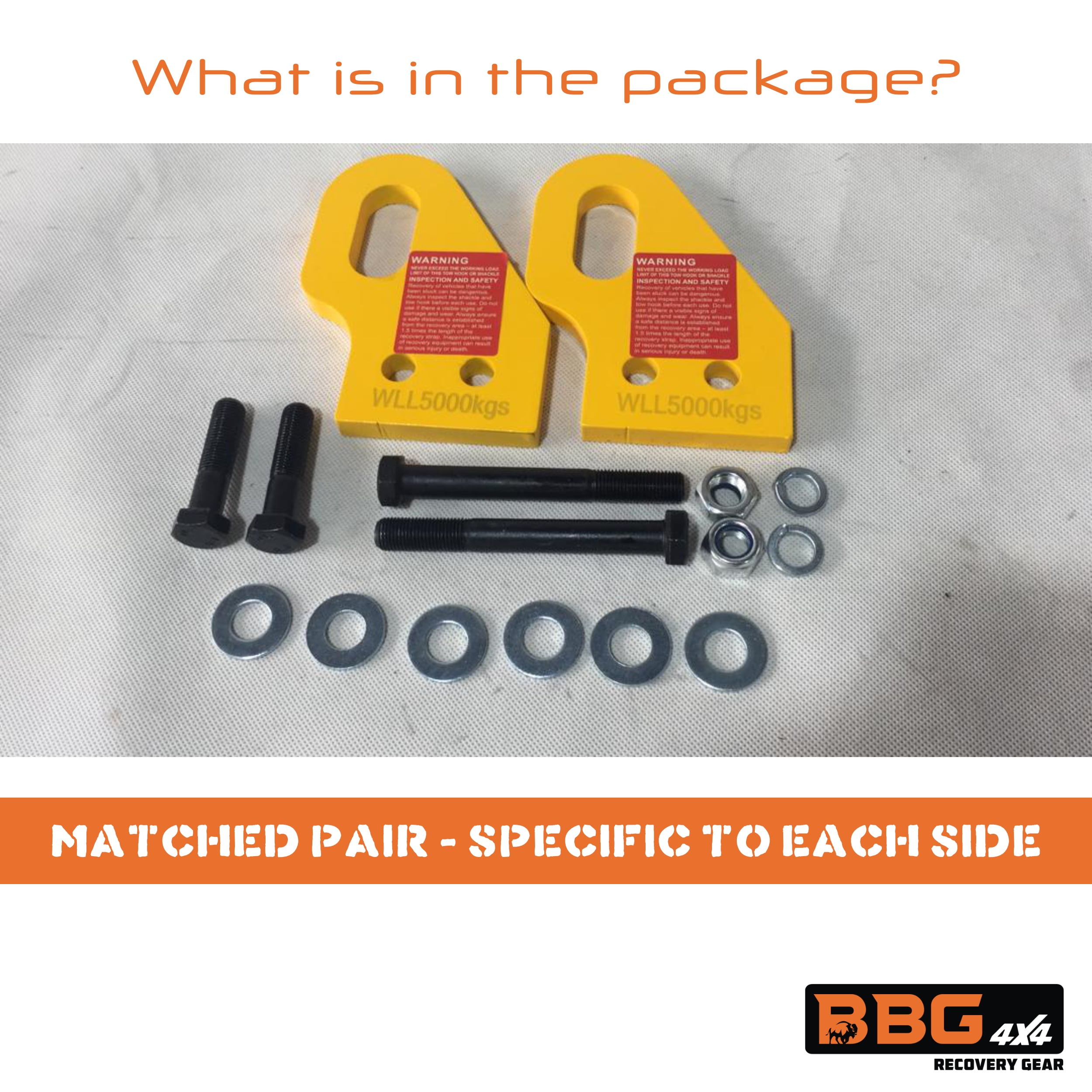

Each side uses 1 x M12x1.25x100L & 1 x M12x1.25 x 50L bolts .
Hi tensile bolts supplied, with relevant flat & split washer. The longer bolts are for the TOP hole of the tow point mount holes. Installation of this 100mm long bolt requires the radiator to be moved backwards to allow for the bolt to be inserted from the radiator side of the chassis rail. You do not need to completely disconnect the radiator.
A flat washer should be used with the bolt head, with the bolt secured with a flat washer & nyloc nut.
The 50mm long bolt is for the LOWER hole of the tow point mount hole. This 50mm long bolt enters the tow point and secures into the factory nut in the chassis. A flat washer and split washer should be used with the bolt head.
Ensure both bolts per tow point are fitted and torqued to recommended settings to ensure tow points meet tested standards.
FOR YOUR SAFETY
- Do not use with soft shackles
- Only front loading
Shackle 3/4″ D-Ring 4.75T WLL (2 Pack)
Recovery Point for Lexus GX460 / GX470 (2006 – 2009 ) / 5th Gen 4Runner / FJ Cruiser
| Weight | 4.5 lbs |
|---|---|
| Dimensions | 6.6 × 4.5 × 2.6 in |
| Brand | BBG4x4 |
